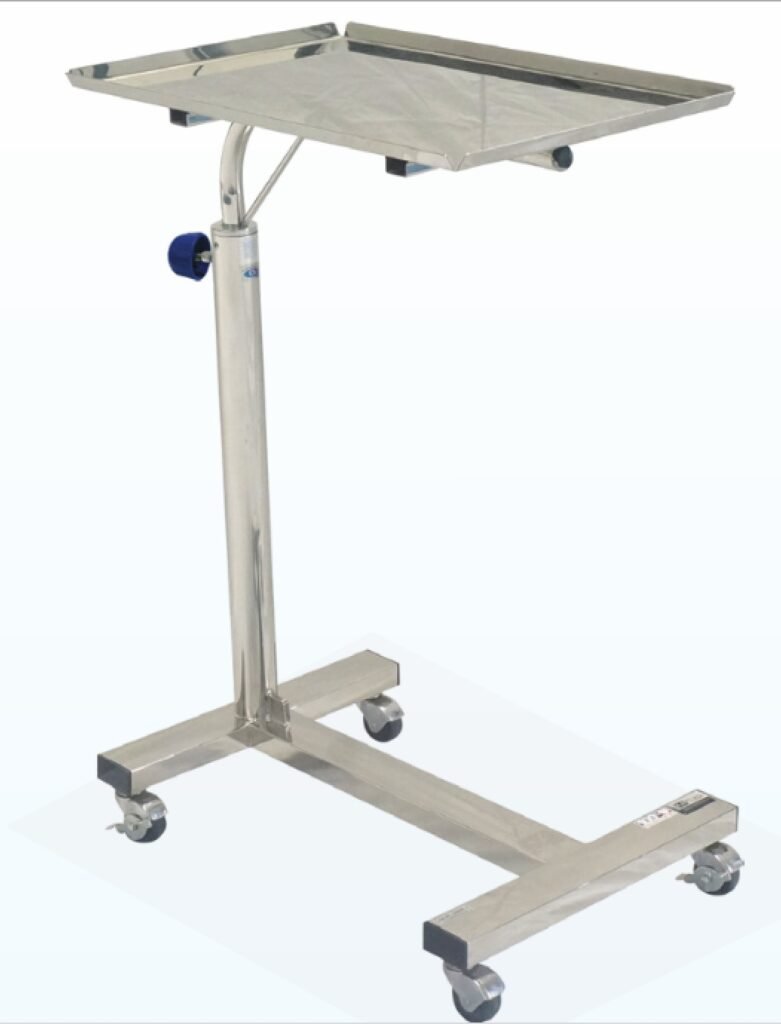

BONZO Mayo Table Full (SS) BM – 01

CONSTRUCTION
TABLE
Made of stainless steel plate 1,5mm thickness.
Assembled with TIG welding process
UPPER STAND
Made of stainless steel pipe Ø 1” .
Assembled with TIG welding process
LOWER STAND
Made of stainless steel pipe Ø 2″.
Assembled with TIG welding process
FOOT UNIT
Made of square stainless steel pipe 30 x 60 mm.
Assembled with TIG welding process
ADJUSTMENT RANGE
Hi – low adjustment by screw lock mechanism
CASTOR
4 castors Ø 2″ from rubber, two castors with brake
FINISHING
Polished
Max. LOAD
20kg placed near the pole position, and 5 kg
was placed at the end of the table
DIMENSION
585 (L) X 384 (W) X 865 – 1200 (H) mm
PACKAGING SIZE
82 (L) X 45 (W) X 97 (H) cm
